The S-model e-160 has all the right elements to take your rides to the next level.

The S-model e-160 has all the right elements to take your rides to the next level.

Whyte Bikes

Whyte E-160 S 29er

£3,699.99 £6,399.00 42% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Pre Christmas delivery is available on the majority of our products in stock, you can contact us in a number of ways to check deliver information, why not try our WhatsApp chat channel

Hassle free returns

We are pleased to offer a 90 day online return policy on both bikes and accessories purchased online. All we ask is that the item is returned to us in an unused condition and with its original packaging.

Click to message
If you require any additional information, including product availability, order information or returns then please feel free to contact us via the WhatsApp messaging service!

  • We are pleased to offer a 90 day online return policy on both bikes and accessories purchased online. All we ask is that the item is returned to us in an unused condition and with its original packaging.
  • We will refund postage costs on any faulty or damaged items but not if the item was incorrectly ordered.
  • Refunds will only be returned to the original purchaser using the original payment method — refunds usually take 3-4 working days, but it could be longer depending on your bank
  • If you have a damaged or faulty item we will send you out a replacement as soon as the returned item is received. Please note that if an item has been damaged through rider neglect, misuse or wear and tear , then it will not be covered by manufacturer’s warranty. We advise you to check the individual manufacturer’s warranty policy to see whether the specific problem or issue you are experiencing is covered.
  • We would ask you to fully check the goods once received to ensure that they are as you required. Any subsequent use will be deemed acceptance of the goods.
  • We are happy to discuss Returns procedure – please give us a call or drop us an email at orders@cycleworld.co.uk.

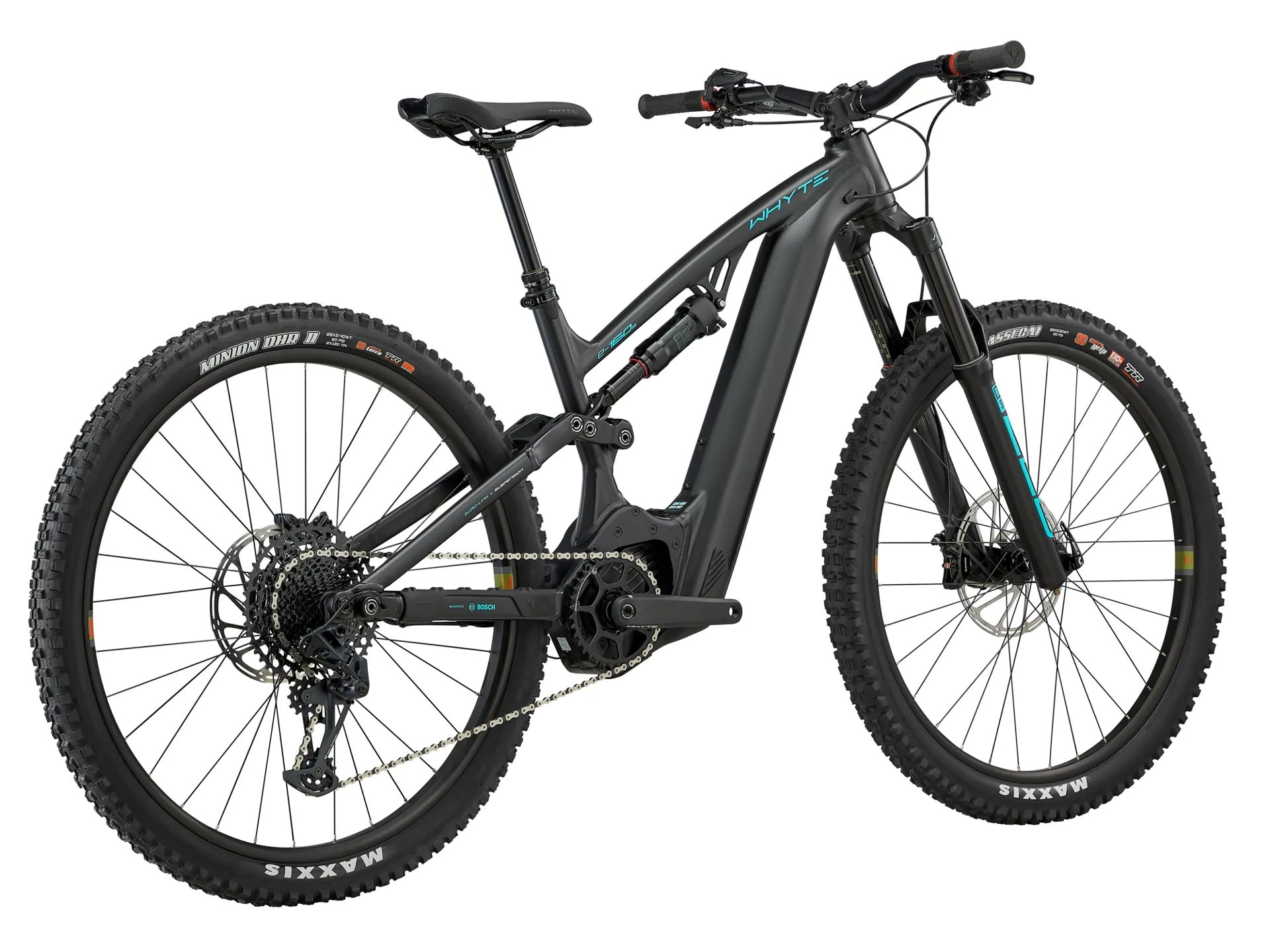

Whyte E-160 S 29er

Season:2022

Brand:Whyte Bikes

Code:WE160ST

SHOP SOILED - SCRATCHED FORK GRAPHIC

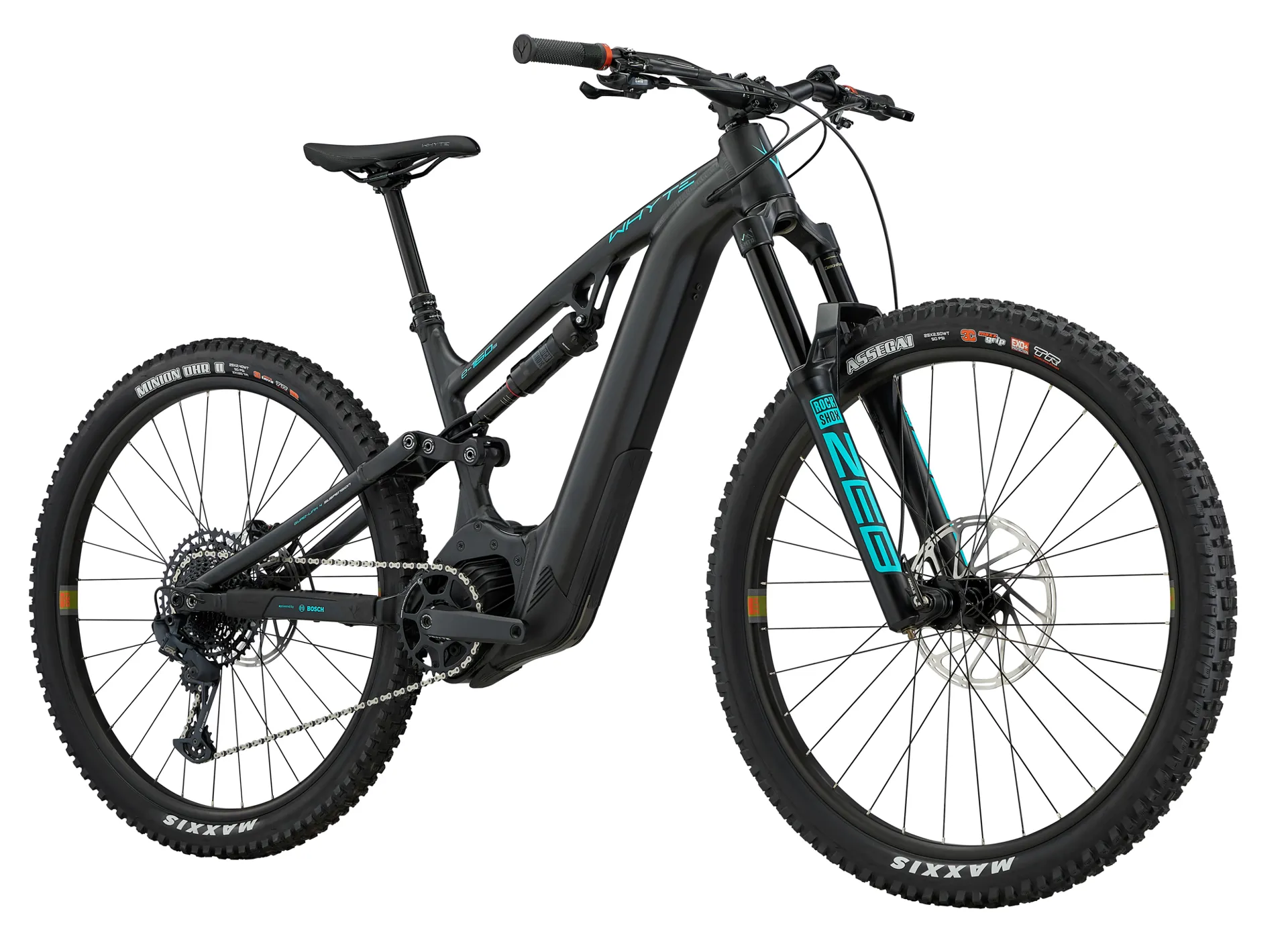

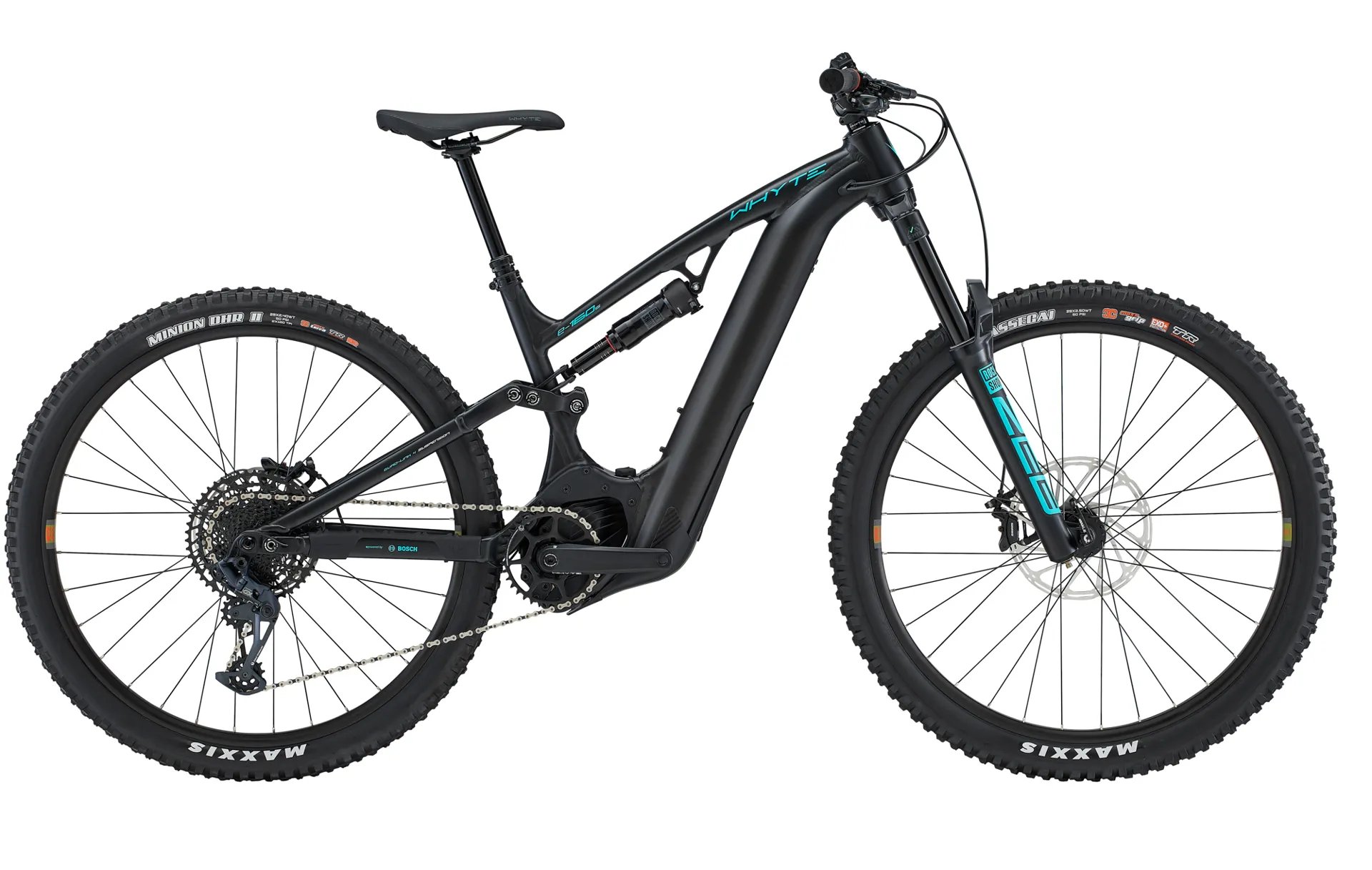

The S-model e-160 has all the right elements to take your rides to the next level. Our unique lowered centre of gravity concept delivers class leading handling and agility. And thanks to a huge 750Wh battery and high power85Nm Bosch Performance Line CX motor,you're geared up for maximum enjoyment on the trails.

Our brand-new frameset addsa single-bolt release downtube protection systemand tool-free battery removal to our legendary, multi award winning low centre of gravity and Total Geometry handling. That gives it incredible agility and accuracy for dominating the rowdiest trails in twin 29er format or choose the 27.5in rear wheel MX version if you’re a shredder who really want to get loose. XS and S sizes come with 27.5in wheels both ends for balanced handling and all bikes get top spec Maxxis tyres, oversized RockShox Zeb forks and 220mm front brake rotors for maximum confidence.

Because at Whyte we don’t cut corners, we just hit them as hard as possible.

Technical Information

Specifications

COLOURGloss Turquoise with Black & WhiteCASSETTESRAM PG1210, 11-50, 12 Speed
FRAME6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost DropoutsCHAINSRAM GX Eagle, 12 Speed

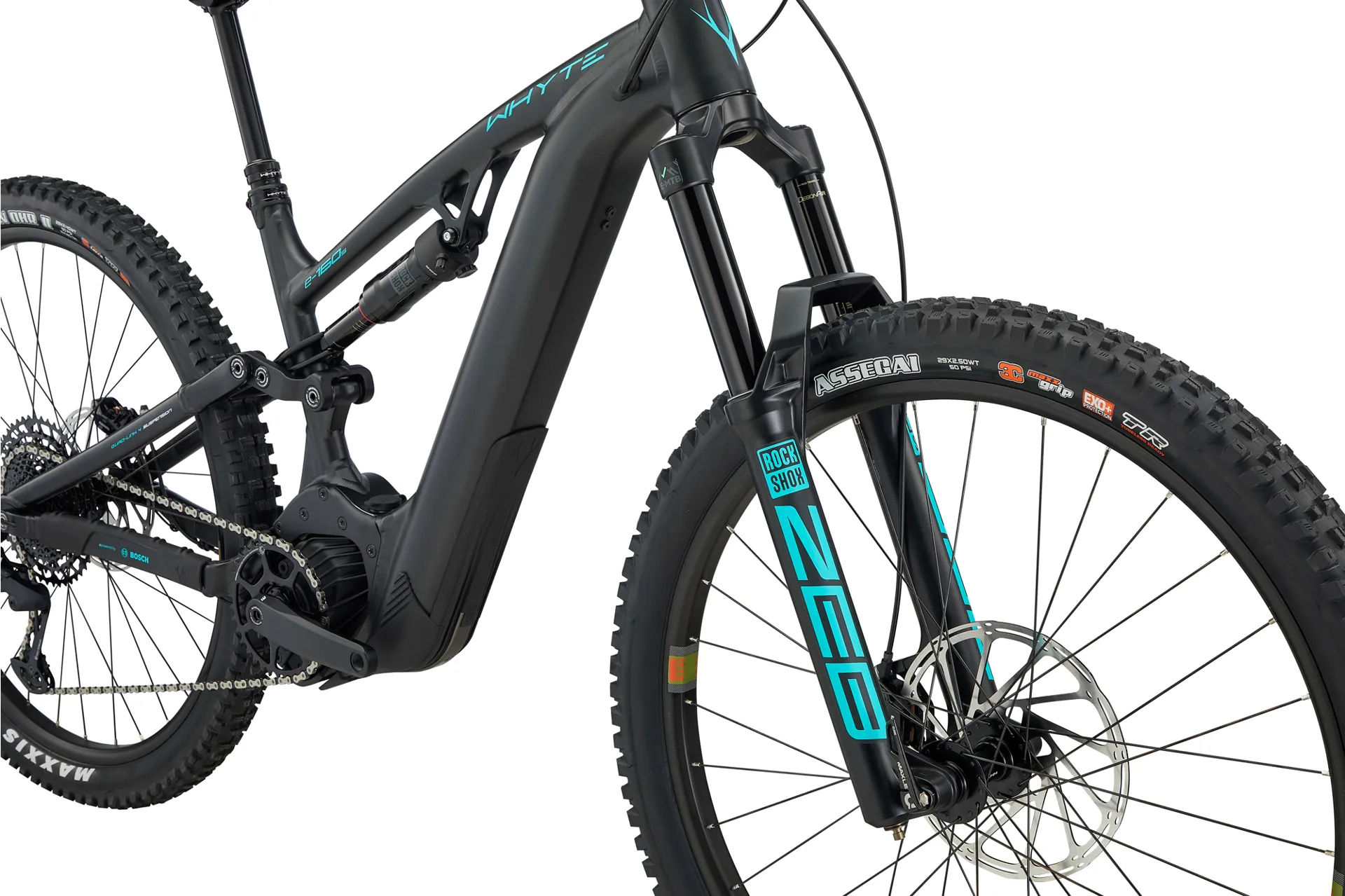

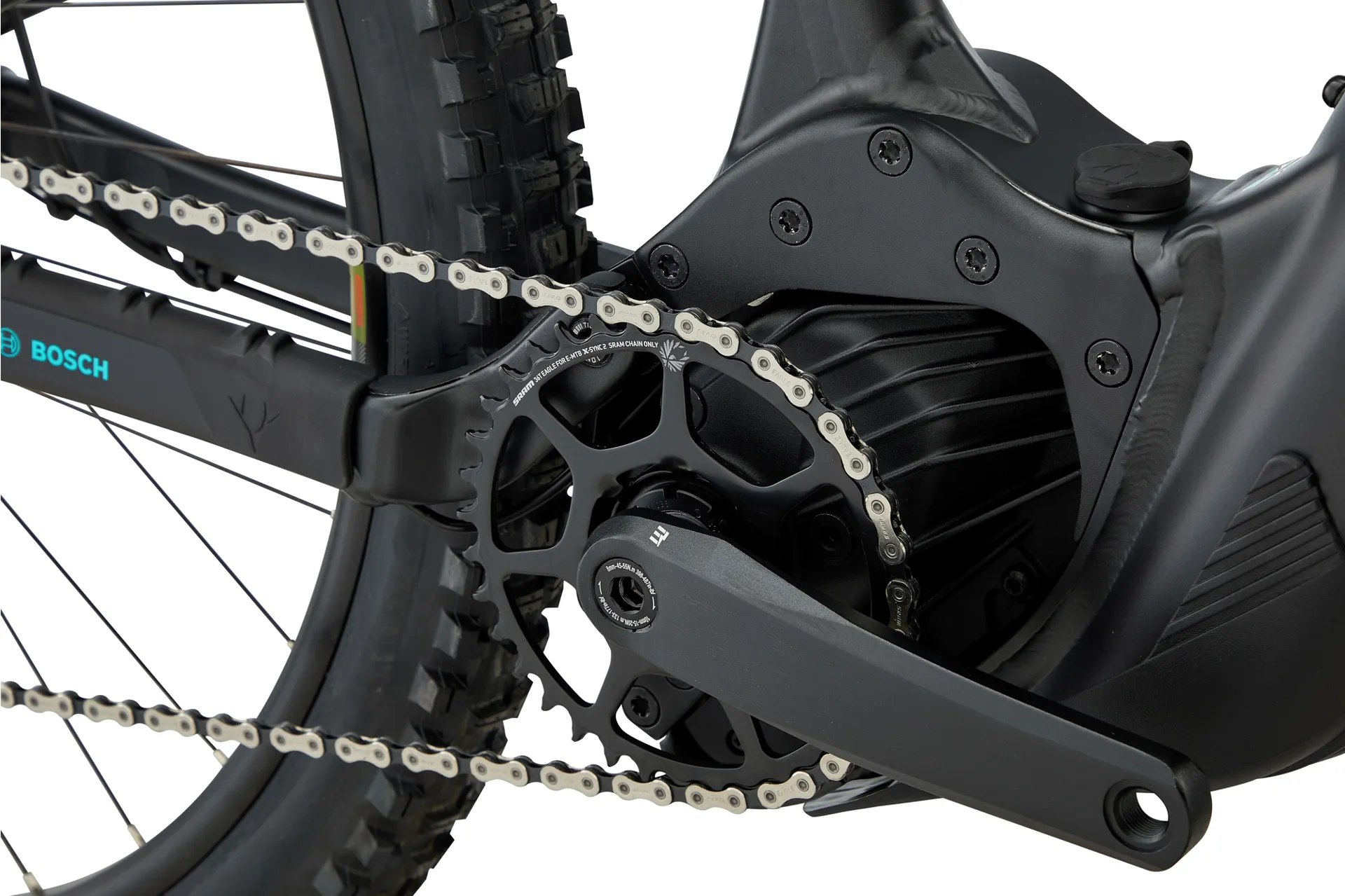

FORKRockShox ZEB 29", 160mm Travel, 44mm Offset, DebonAir, Rush RC Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle UltimateCRANKSETSRAM EX1, 165mm, ISIS with X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black

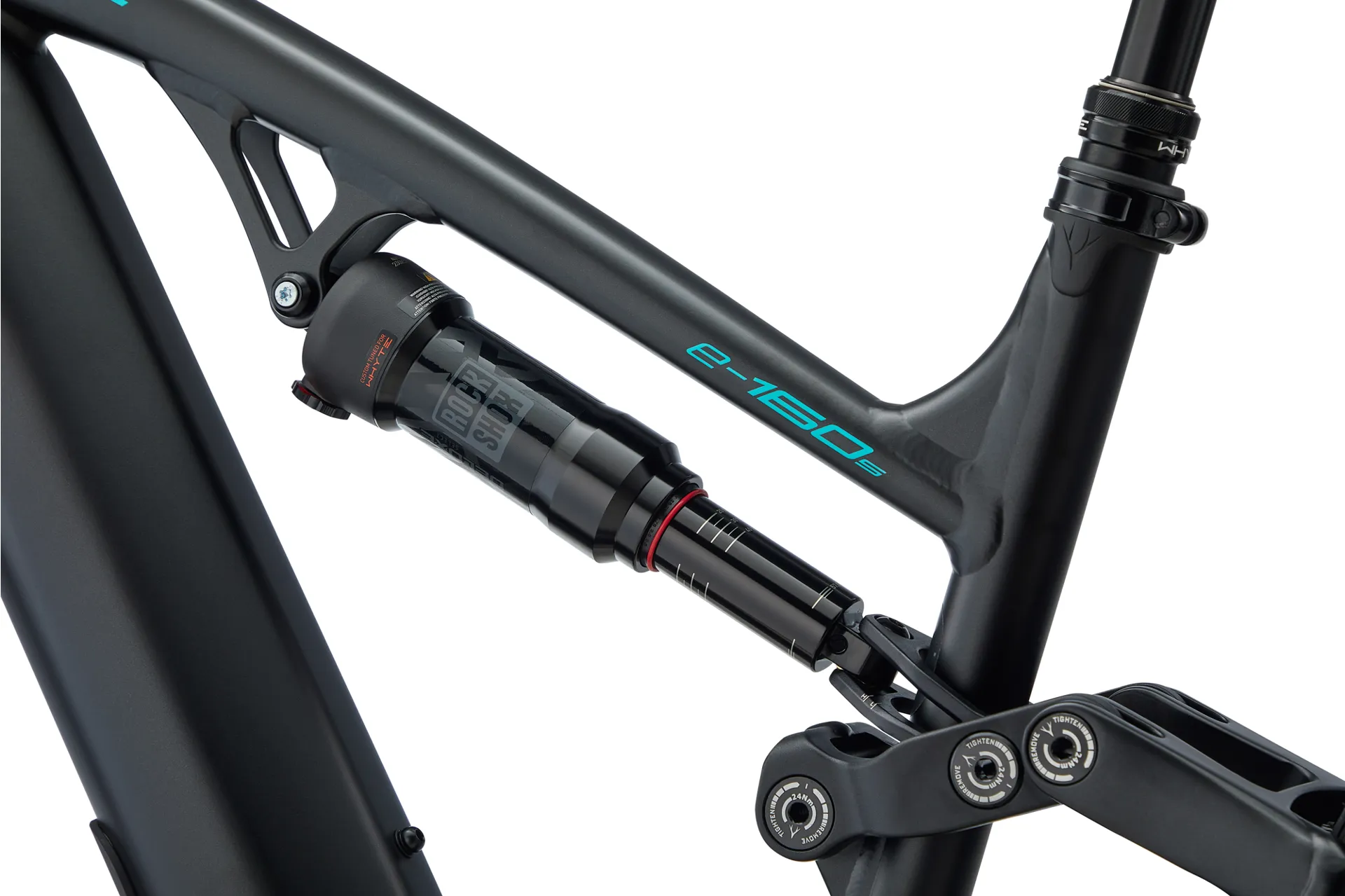

REAR SHOCKRockShox Deluxe Select R, Fast Black Coating, Adjustable ReboundBOTTOM BRACKETN/A

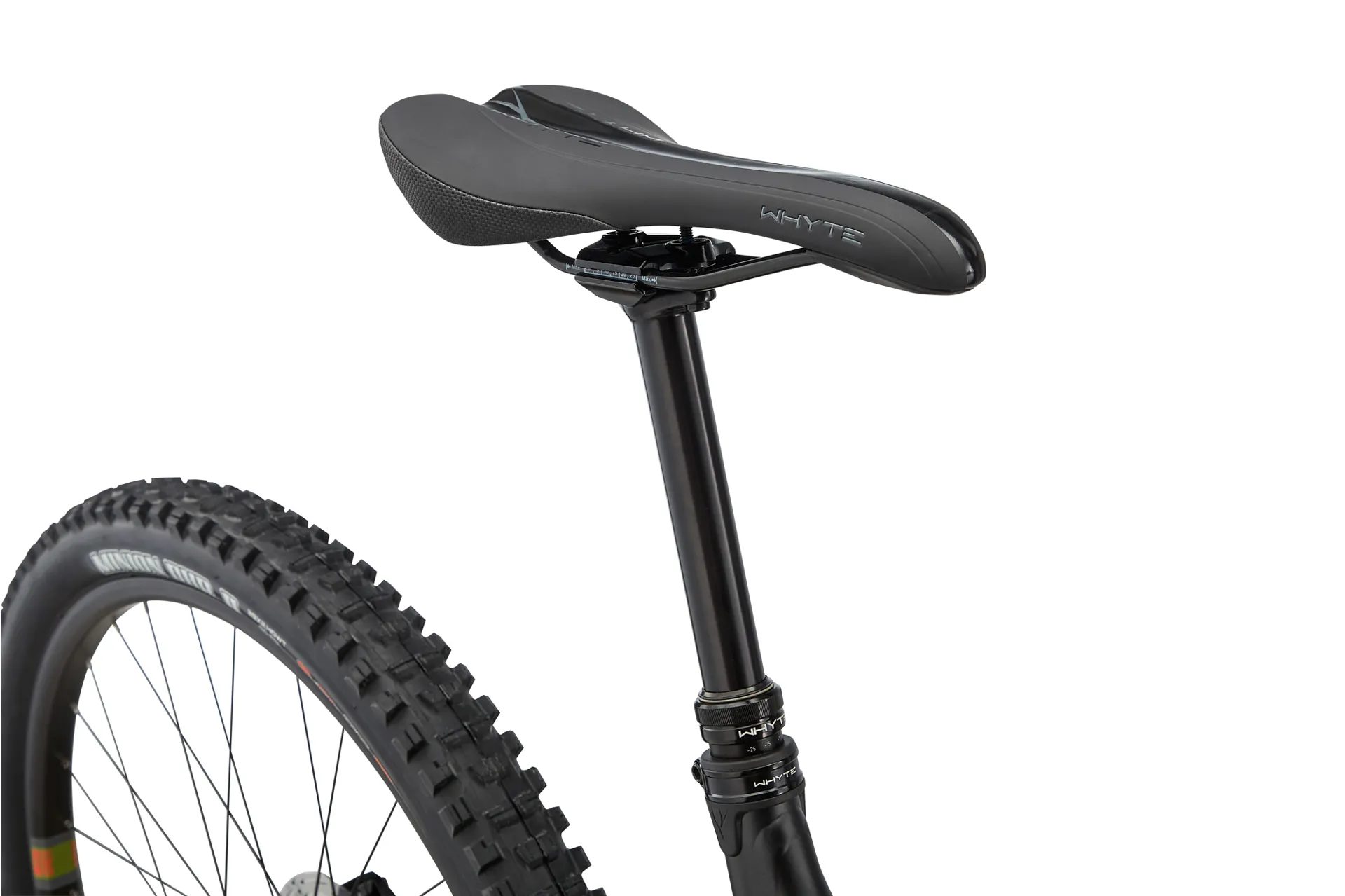

HEADSETFSA No. 55R/35 Orbit 1.5 ZS, 1.8" Lower and 1 1/8" Upper Sealed Cartridge BearingsSEATPOSTWhyte drop.it Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, MMX Paddle Remote Lever
REAR HUBAlloy, E-Bike Specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 HoleSADDLEWhyte Custom, Dual Density, Triple Panel Design
FRONT HUBAlloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 HoleHANDLEBARWhyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide
SPOKESDT Swiss New Champion 2.0mm, Black Stainless, Brass NipplesSTEMWhyte Enduro Stem, 35mm Bar Bore, 35mm Extension
RIMSWTB HTZ i30 TCS 2.0 System, Asymmetric, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 HoleGRIPSWhyte Lock-On Enduro Grip
TYREMaxxis Assegai WT, TR, 29" x 2.5" 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound, Front, Maxxis Minion DHR II WT, TR, 29" x 2.4" 120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead, RearBRAKES FRONTSRAM Guide RE, 4 Piston with Sintered Metal Pads, 220mm Disc
SHIFT LEVERSSRAM GX Eagle Lunar, Single Click, MMX, 12 SpeedBRAKES REARSRAM Guide RE, 4 Piston with Sintered Metal Pads, 200mm Disc

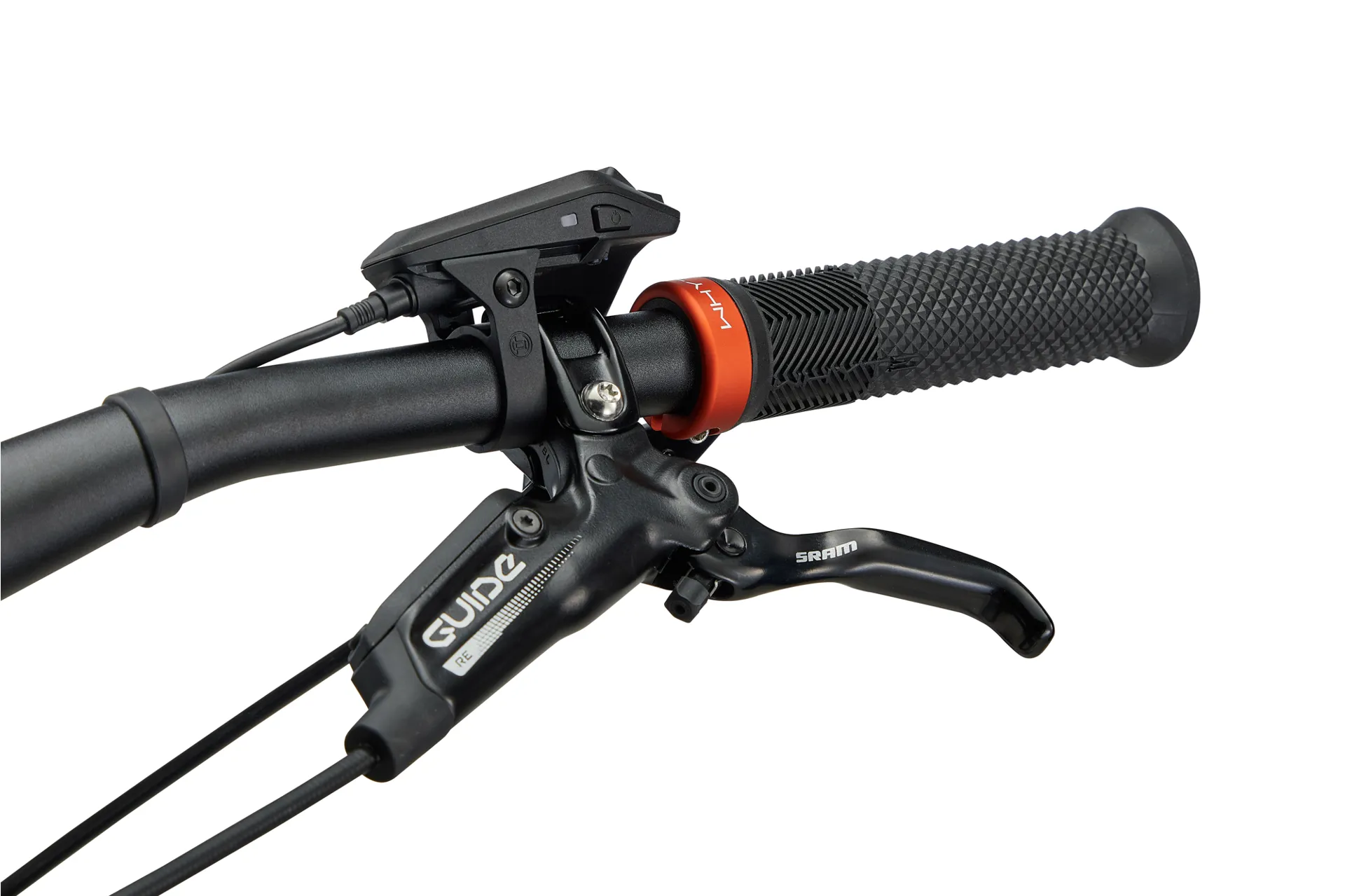

FRONT MECHN/ABRAKE LEVERSSRAM Guide RE, MMX

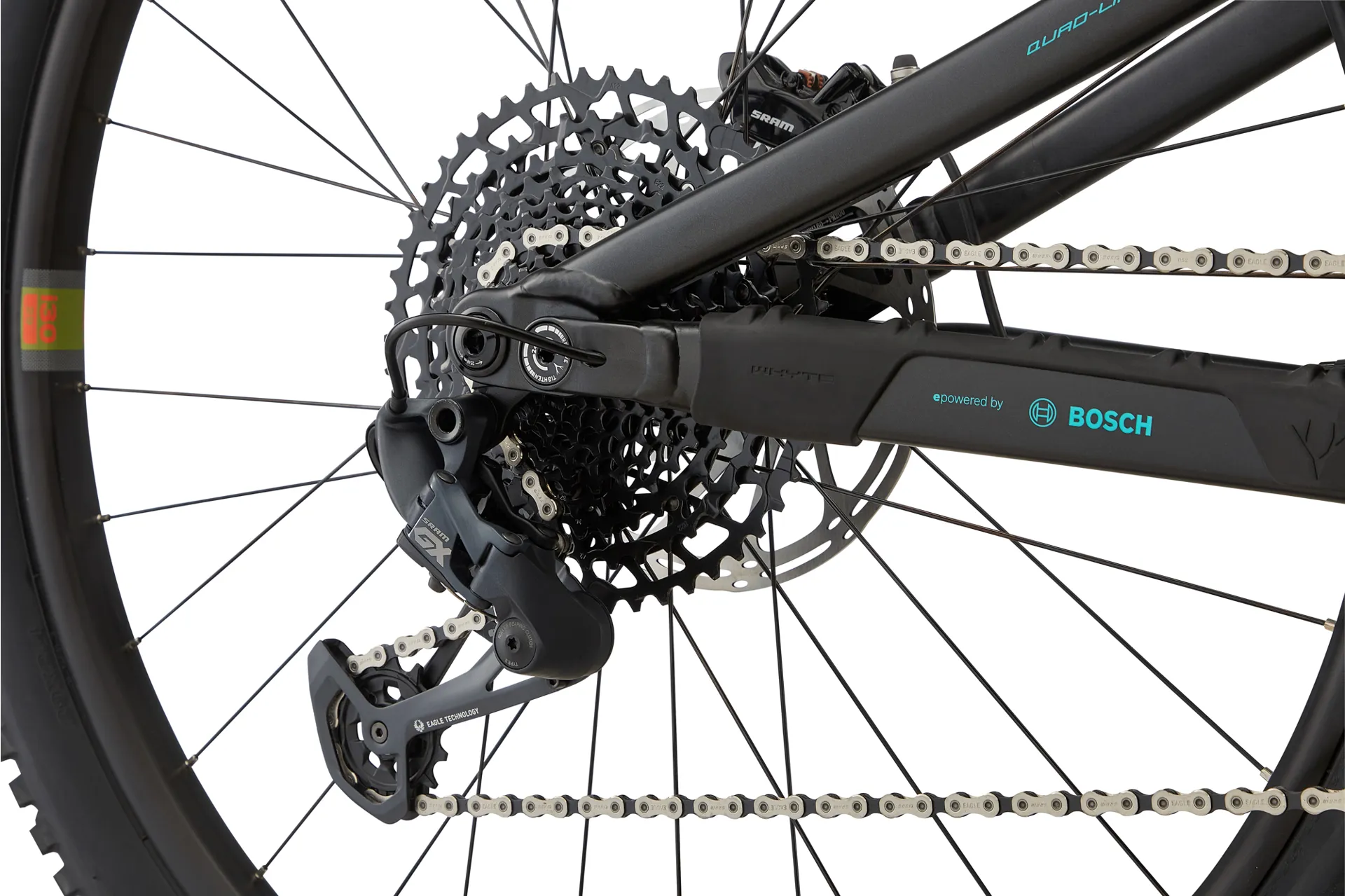

REAR MECHSRAM GX Eagle Lunar, 12 SpeedPEDALSNone
Sizing Information
SIZEMLXL
A HEAD TUBE ANGLE64.564.564.5
B SEAT TUBE ANGLE75.575.375.1
C TOP TUBE HORIZONTAL607.3640.4672.5
D BB HEIGHT ABOVE GROUND340340340
E STAND OVER HEIGHT771773776
F WHEEL BASE1234.81269.21302.7
G CHAIN STAY LENGTH446446446
H SEAT POST DIAMETER30.930.930.9
I HEAD TUBE LENGTH105120135
J SEAT TUBE LENGTH420445470
STACK631.5645.1658.6
REACH455483510
