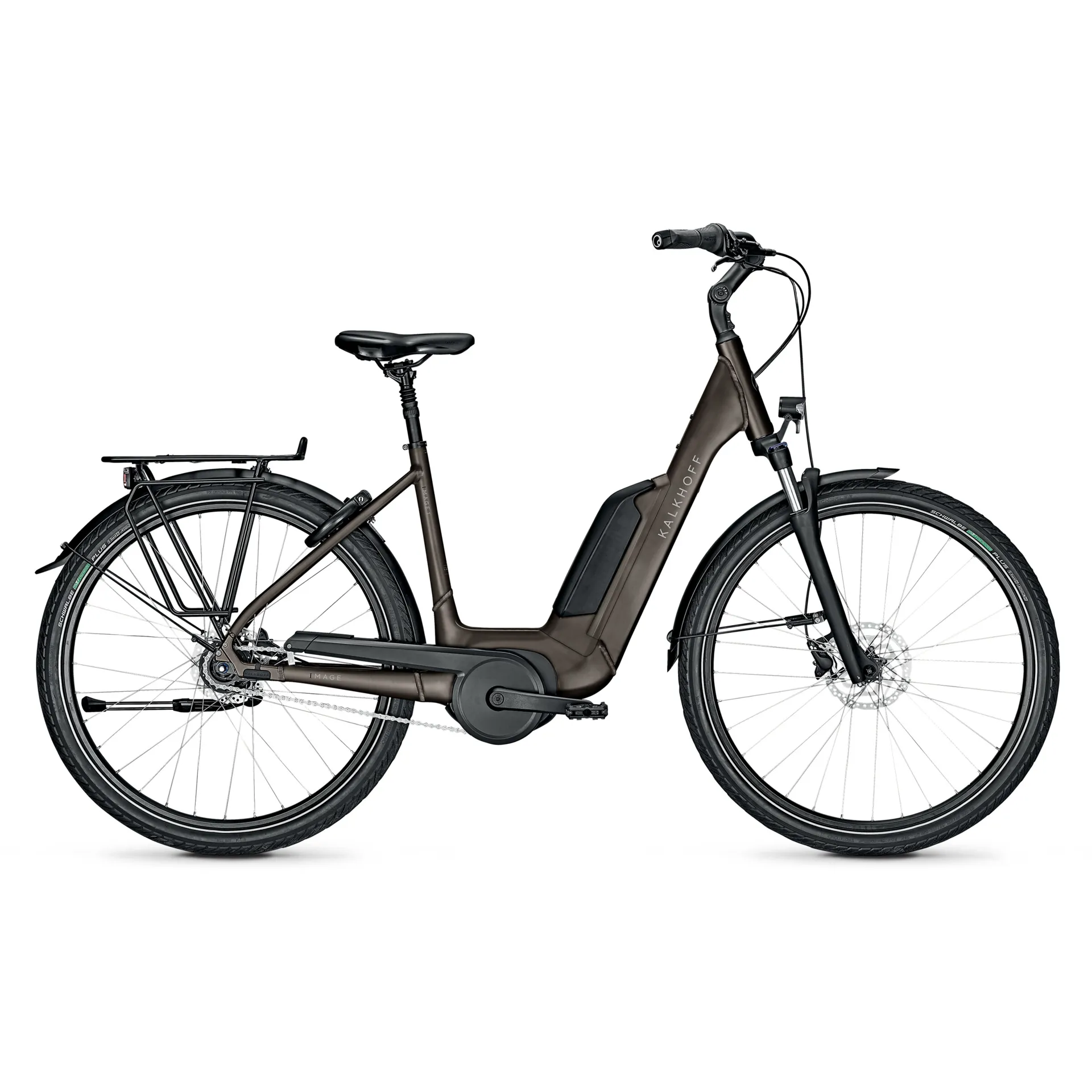

Kalkhoff Image 1.B Move 50 Grey

Season:ALL YEAR

Brand:Kalkhoff

Code:644526267

Welcome to the urban mobility of tomorrow
No waiting for the public transport, no traffic jams in rush hour and no search for a parking space - the Image 1.B Move is your reliable low-entry e-bike for more freedom in the city. Whether you're on your way to work or on a picnic tour - with the harmonious Bosch drive and the ergonomic components, you'll always experience effortless riding. And if you want to enjoy the summer in the next café, the One-Key locking system for fast and secure parking offers you maximum comfort even away from the saddle.
Technical Information
Main Information
Type:
25km/h E-Bike
Wheel Size:
28" inches
Total number of gears:
8
StVZO:
German traffic regulations approved
Dimensions
Weight:
27.2 kg
Maximumpermissibleweight limit:
130 kg
Scope of Delivery
Includes pedals:
Yes
Frame
Damper brand:
Without shock
System:
Wave
Frame material:
Aluminium
further specifications:
Kalkhoff Image 1.B Move
Motor
Brand:
Bosch
Model:
Active Gen.3
Type:
Mid-drive motor
Performance:
250 Watt
Battery
Model:
Bosch Power Tube
Type:
Lithium-Ion
energy storage:
500 Wh
battery mounting:
Removable intube battery
Display
Display:
Bosch Purion
Reach
Range (km):
60-150
Fork
System:
Suspension fork
Brand:
Suntour
Type:
NVX30
Suspension Fork
Suspension fork travel:
75 mm
Shifting Components
Drivetrain type:
Internal geared hub
Gear No.:
8
Brand:
Shimano
Type:
Nexus 8
Shift Levers
Model:
Shimano Nexus
Chainset
Model:
Aluminium, 170 mm
Sprocket 1:
38 teeth
Chain
Model:
KMC Z1 EPT, anti-rust coating
Cassette
Sprocket Gear Ratio (teeth):
19 teeth
Model:
Shimano
Front Brakes
Brand:
Shimano
Type:
MT200
Brake system:
Hydraulic disc brake
disc diameter:
180 mm
Rear Brakes
Brand:
Shimano
Type:
MT200
Brake system:
Hydraulic disc brake
disc diameter:
160 mm
Brake Levers
Model:
Shimano MT200
Handlebars
System:
Multiposition / Tours
Model:
Tour
Material:
Aluminium
Grips:
Ergon GC10
Stem
System:
A-Head
Model:
90 mm (XS, S), 110 mm (M, L) length
Material:
Aluminium
Adjustable angles:
yes
Saddle
Saddle:
Selle Royal Nuvola Unitec
Seatpost
System:
Spring loaded
Material:
Aluminium
Front Hub
Model:
Shimano TX505 QR
Rear Hub
Model:
Shimano Nexus 8
Rims
Model:
Schürmann CRAFT 21
Material:
Aluminium
System:
double wall
Spokes
Spokes:
Niro
Front Tyre
Size (In Inches):
28
Tire width:
55 mm
Model:
Schwalbe Energizer Plus Tour
Rear Tyre
Size (In Inches):
28
Tire width:
55 mm
Model:
Schwalbe Energizer Plus Tour
Equipment
Pedals:
Aluminium, with anti-slip protection and reflector
Luggage Rack
Material:
Aluminium
Details:
Snap-IT system
Stand
System:
Rear stay stand
Mudguards
Material:
Plastic
Dynamo
System:
E-bike battery operated lighting
Front Light
System:
LED
Model:
Herrmans MR GO, 20 Lux
Rear Light
Model:
Herrmans H-Trace, LED
Energy Saving
Plug Type:
EU Plug
Model Year
2022
